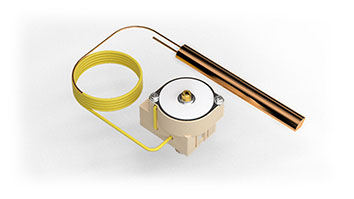

Type 710

F – Control Thermostat
FS – Failsafe Control Thermostat
V – Thermal cut-out
VS – Failsafe Thermal cut-out

Our single-phase electro-mechanical thermal cut out (TB), control thermostat (TW), safety thermal cut out (STB) or safety control thermostat (STW) switches to OFF if cut out temp / max. temp is exceeded. Thermal cut out (TB/STB) remains in that position and can be reseted manually after sensing element has cooled down, whereas control thermostat (TW/STW) closes contact automatically.

rathgeber ce - Type 710
rathgeber dve - Type 710
710 gross - Type 710
710 oben - Type 710
710 seite - Type 710


  • Heater
  • High pressure cleaner
  • Laboratory appliances
  • Storage heater
  • Others


  • Switch off
  • Single Pole, 250V AC (16A)
  • protective conductor optional
  • Switch off temp up to 330 °C
  • Capillary tube and sensor in copper or stainless steel
  • Capillary tube length up to 3000 mm
  • Protective tube for capillary, length by choice
  • Sensor in different diameters and profiles
  • Operation type 2.B (S-version: 2.B.K) approved by EN 60730-1/2-9
  • RoHS-compliant
